Back in the day, a 40 MB LT. Kernel Hard Drive for the Commodore 64 cost around $799 new, if you owned a C-128 and needed the C=128 daughter board, that was extra! CMD came along later with a cheaper, more compatible, and larger hard drive, but it remained out of reach of most C= Users at the time. It did not help that for less money, you could buy a cheaper PC system to run something like WWIV or Telegard BBS.
LT Kernel and CMD hard drive emulation has finally come to emulation. VICE 3.5 now supports full LT. Kernel and CMD Hard Drive support (All you need is the roms!)..
This post will focus solely on getting the CMD emulation up and running.
I have attached the CMD HD-Utils disk and the manual. The ROMs are available at Jim Brains' website, and I highly recommend you supporting the community and purchasing the ROM image. http://store.go4retro.com/commodore/cmd ... ary-image/.
You will also want to either purchase the JIffyDOS kernel ROMS, or emulate the RAMLink from the previous post to get full speed out out of the hard drive.
Once you purchase the ROMs, let's get started!
Copy your ROM image file to someplace you will know where it is. I have mine in the main VICE directory in a folder called ROMs
Next, load either 64SC, or SCPU64. (We will use 64SC for this post.).

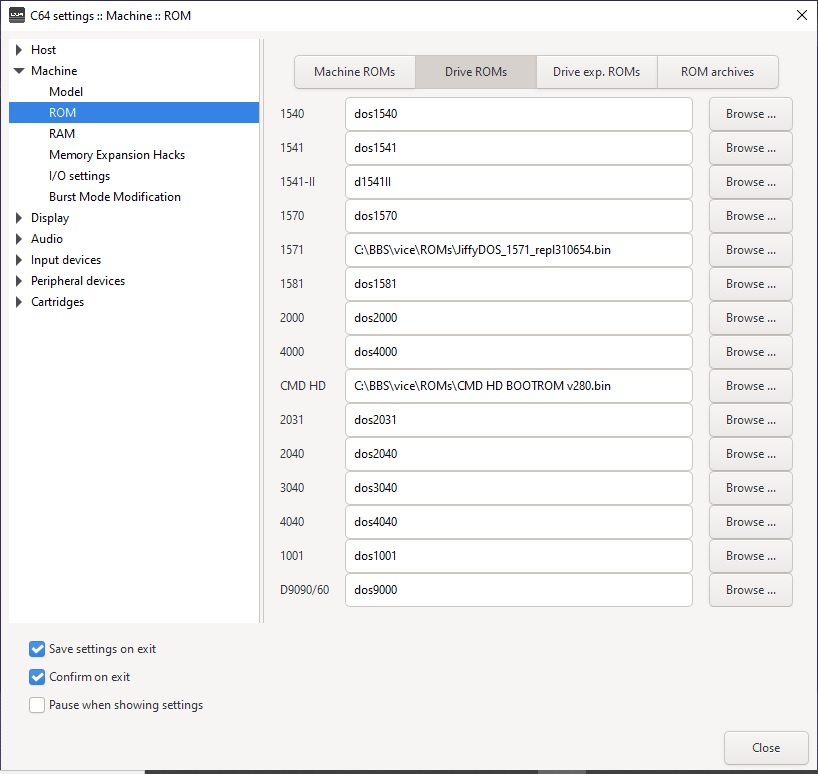

Go to Preferences > Settings > Machine > ROM
Click on the Drive ROMs tab.
Looking at the list of Drives, you will see the CMD HD. Click the browse button to the right then locate your CMD Hard Drive Boot ROMs. Double Click on the file in the list to the left, or single click and click the Open button in the lower left hand corner.
- VICE - Settings - ROMS.jpg (110.69 KiB) Viewed 22364 times

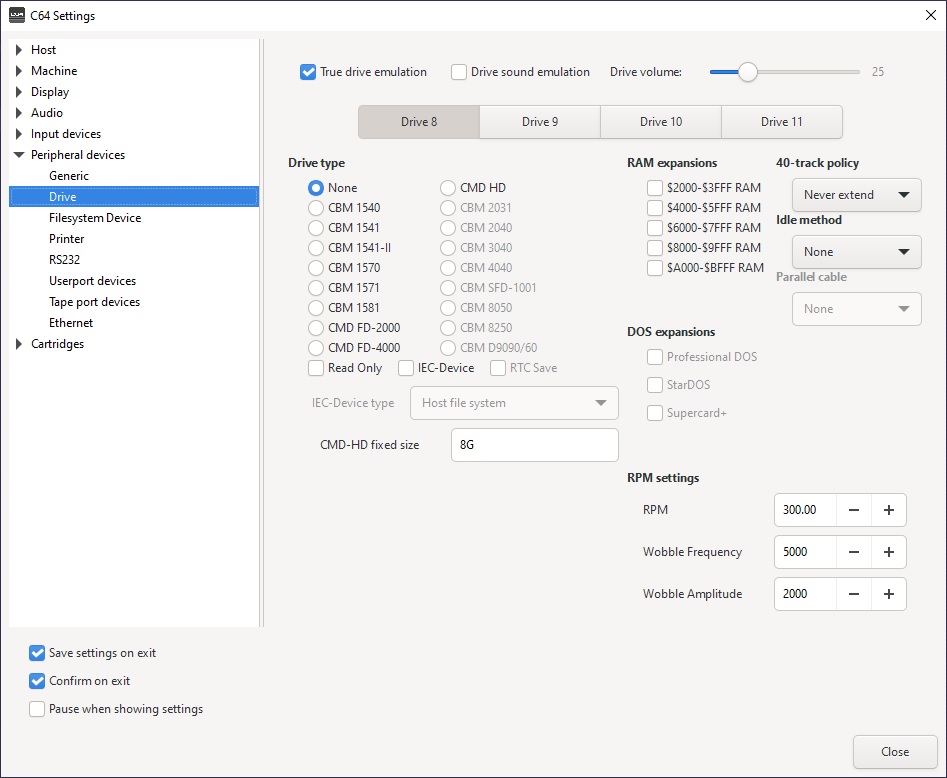

We should be taken back to the settings window. Click on the triangle to the left of Peripheral devices, and select Drive.
Here we will choose which device # we want our CMD Hard Drive to be - 8,9,10, or 11. I have chosen Device 9. Click on the corresponding tab, and click the CMD HD radio button.
- VICE - Settings - Peripheral devices - drive- CMD HD.jpg (118.4 KiB) Viewed 22364 times
First we must decide where the Hard Drive File will reside. Go to your File Explorer, and choose a place for this file to live. For the sake of this demo I will use C:\drives (you can create it anywhere you want..).

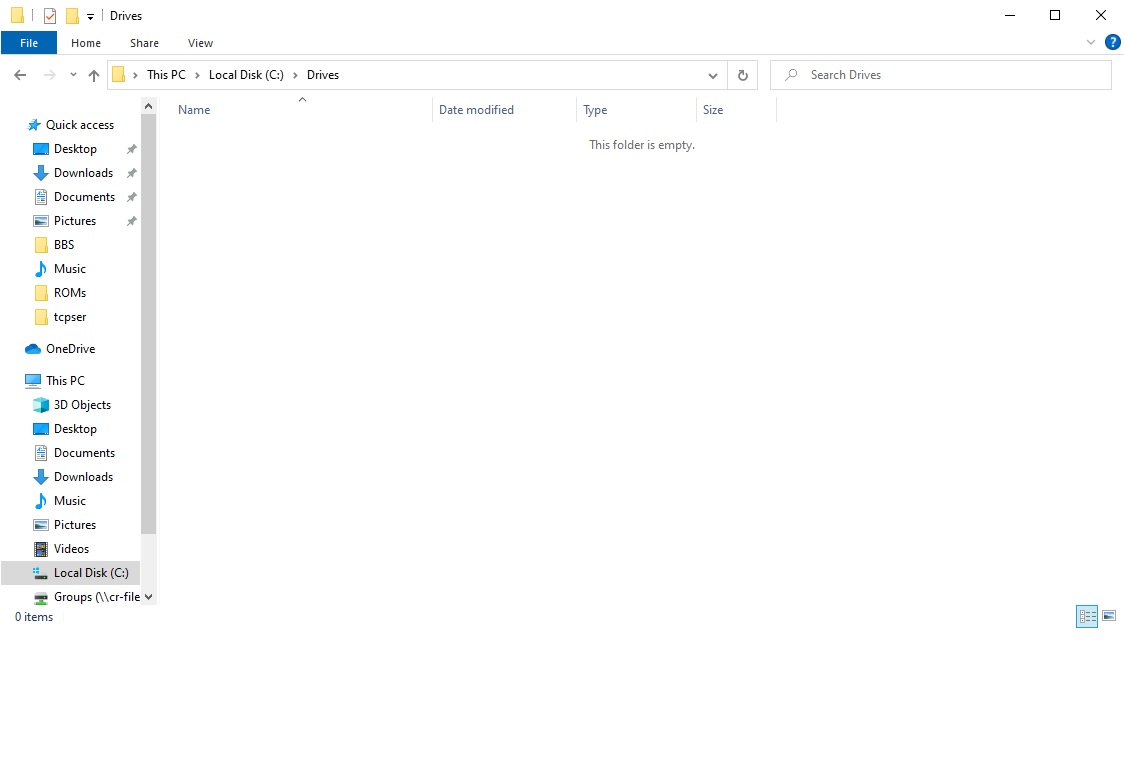

Create a blank text file. Right click anywhere in the file explore window and left click on New > Text Document.
- Empty drives folder.jpg (61.53 KiB) Viewed 22364 times

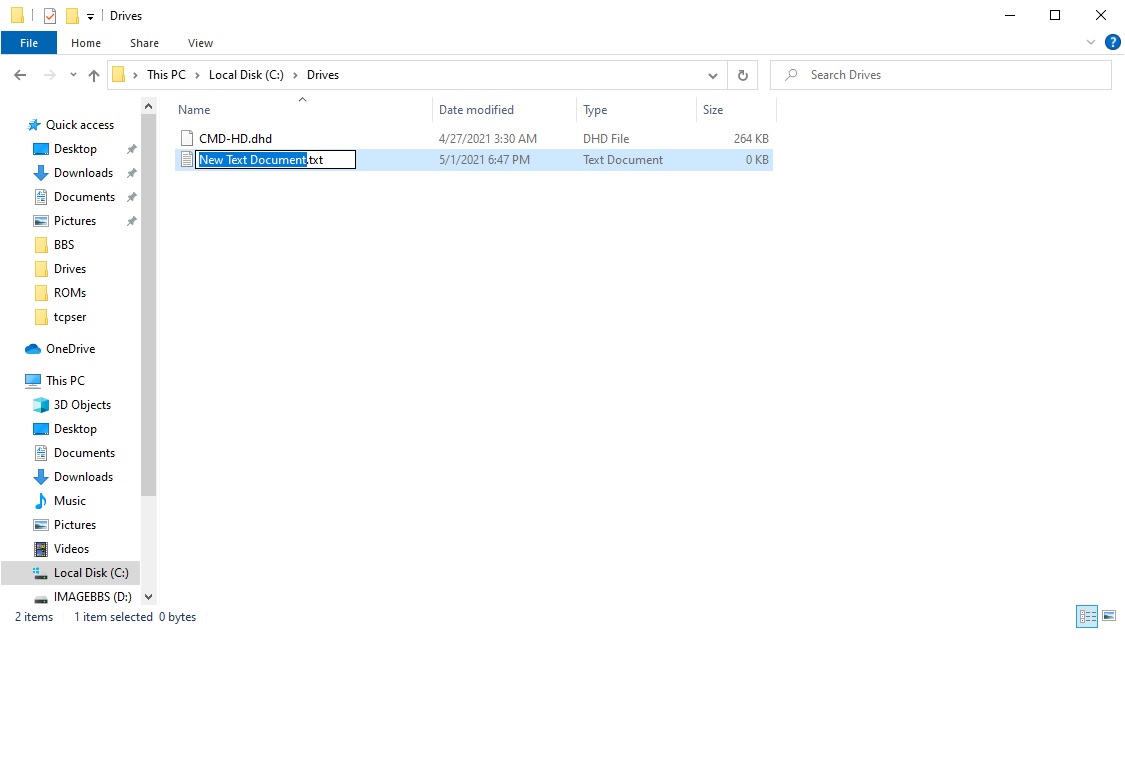

A new notepad file will appear.
- New Text Document.jpg (73.89 KiB) Viewed 22364 times
Rename it CMD-HD.dhd (replacing the .txt file extension).

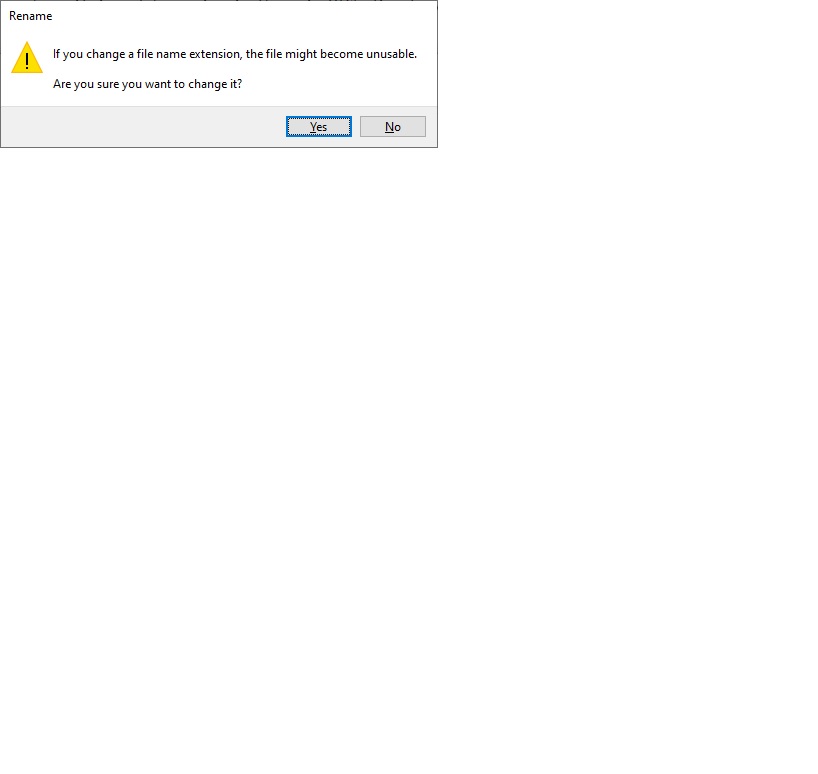

Click YES in the dialog box that will appear.
- Change file type dialog..jpg (26.74 KiB) Viewed 22364 times
Okay! Now we have our Hard Drive .dhd file created.. Now we have to attach it, and format it so the CMD-HD will know what to do with it.
Go back to VICE.

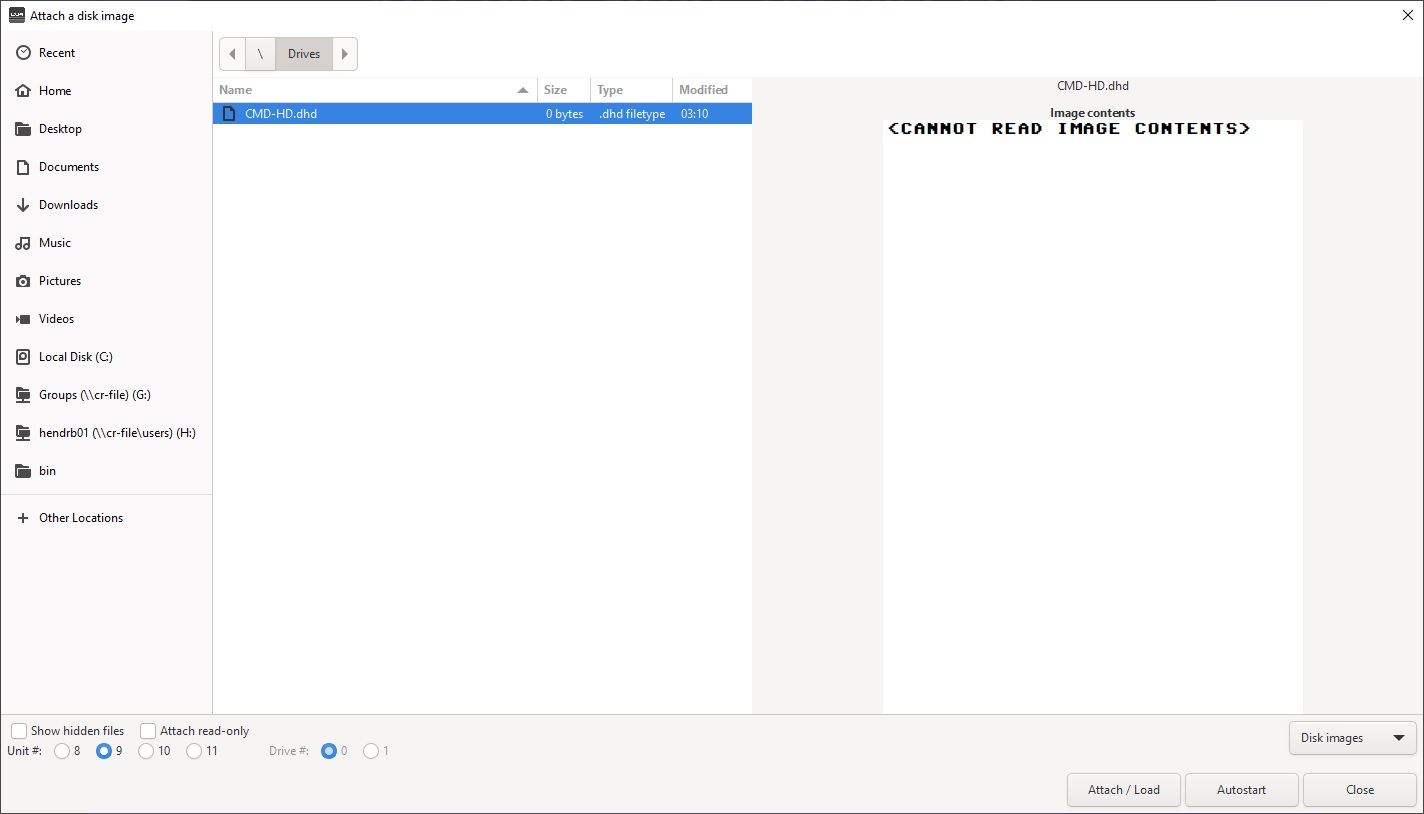

Select File > Attach Disk Image > Drive 9
- VICE - Attach hard disk image.jpg (87.41 KiB) Viewed 22364 times
You're Image file is now attached.. Yes I know the drive is still blinking.. No problem! We now must format the drive using the utility provided on the cmdhdtools disk image.

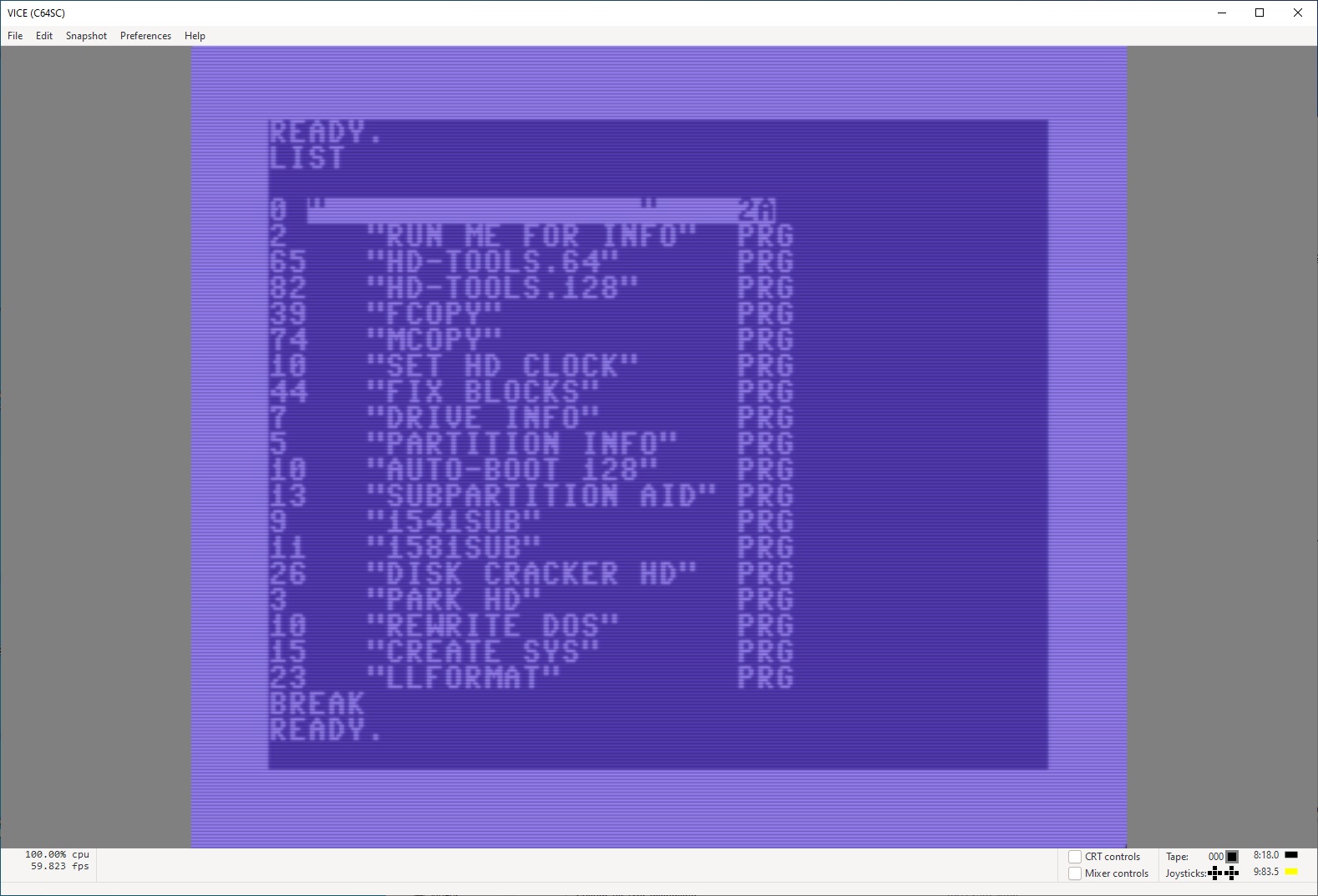

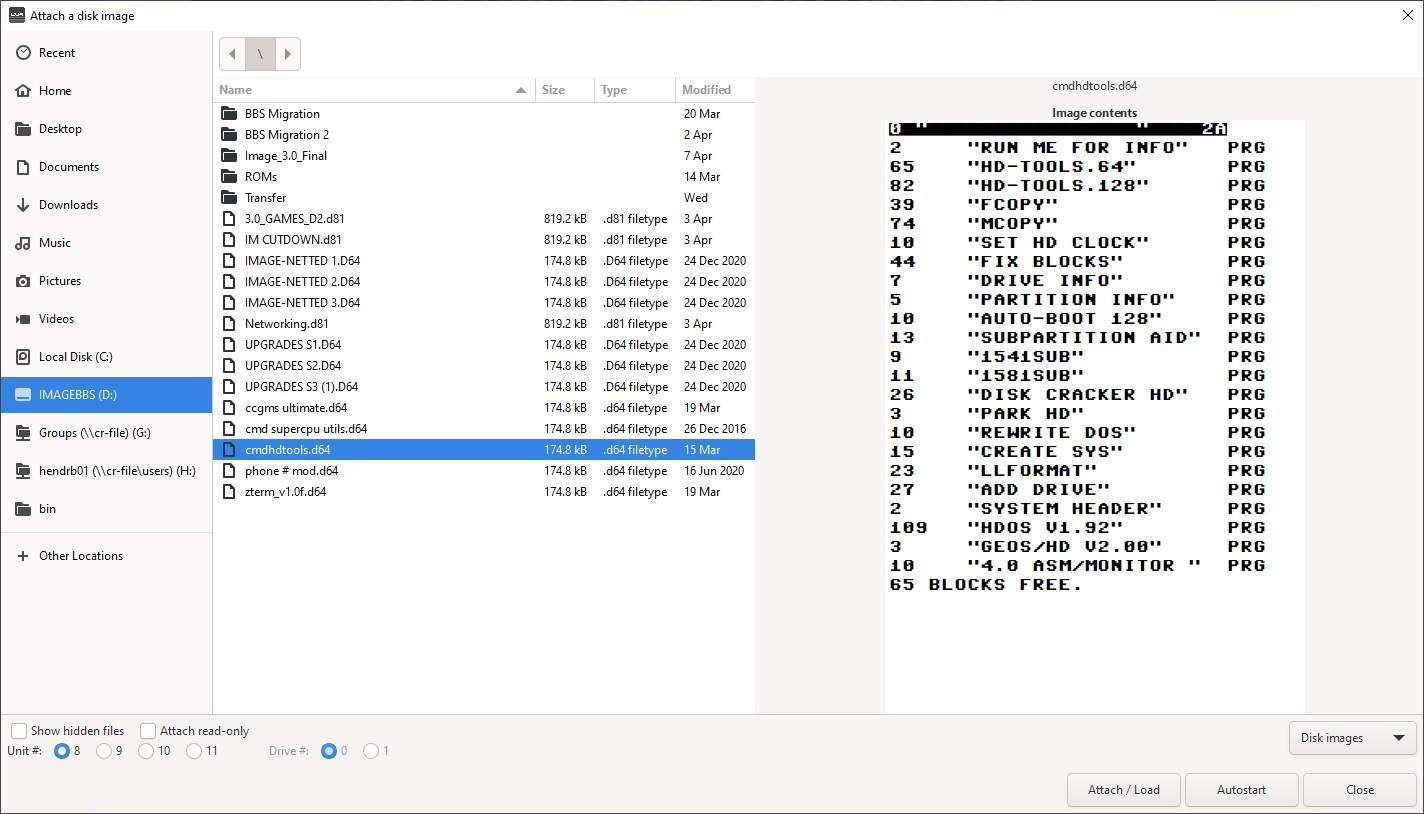

Mount the cmdhdtool.d64 image in drive 8.
- cmdhdtools.jpg (255.86 KiB) Viewed 22364 times
We want to load the create sys.
So type LOAD"CREATE SYS",8,1
Type Run.
Hit Enter..
- cmdhdtools-dir.jpg (278.84 KiB) Viewed 22364 times
I am not sharing the hard drive with other systems, so I answer N at the next screen.

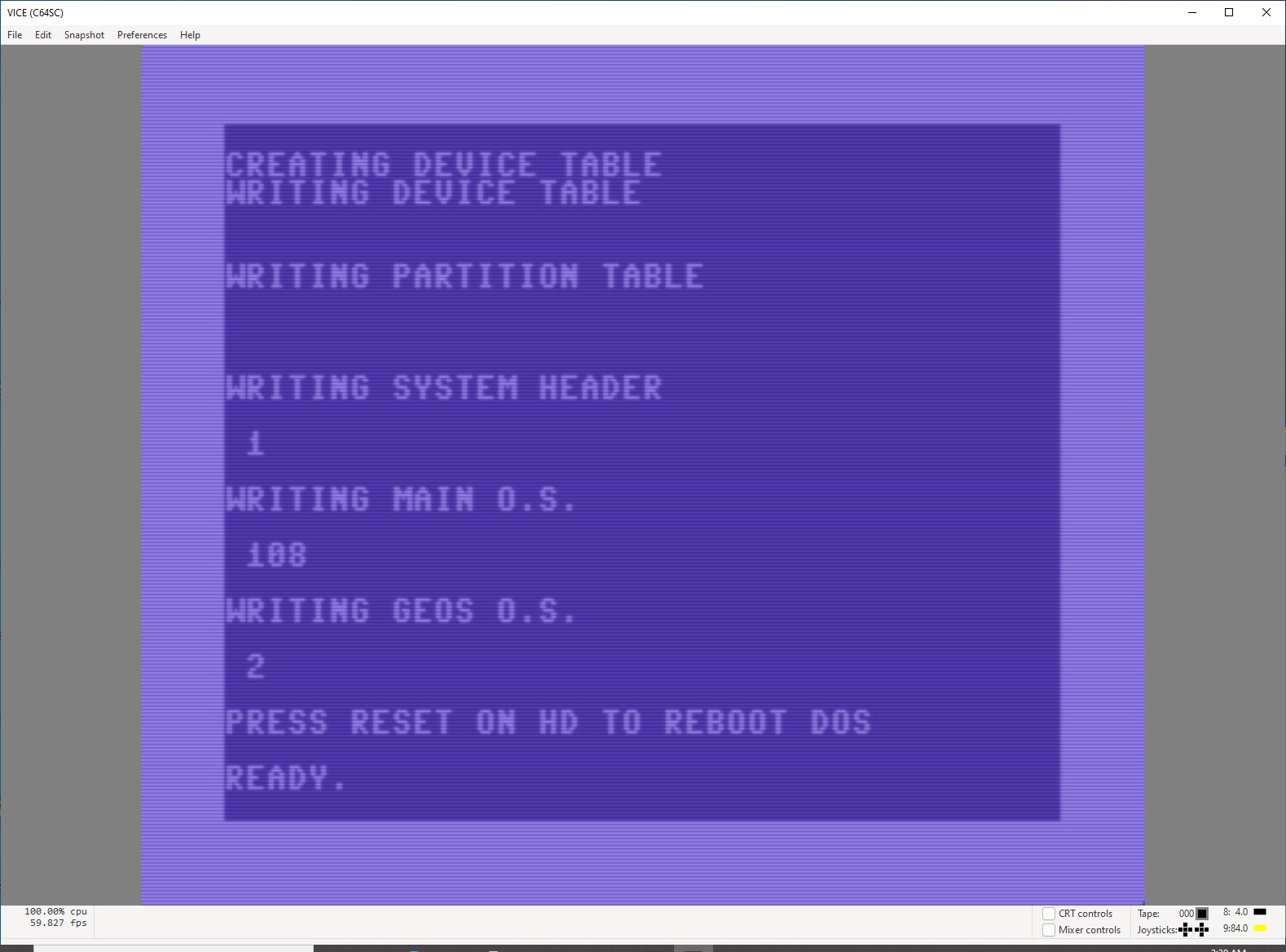

Let Create Sys do its thing. When it is done your screen will look like the picture below.
- Create sys DONE.jpg (309.5 KiB) Viewed 22364 times
Place the drive in "CONFIGURATION MODE"
Look on the bottom right hand on the VICE screen and find the drive # you have configured for your CMD HD. In my configuration I use device 9
Left click the drive # in your status bar.
- Configuration Mode.jpg (211.86 KiB) Viewed 22364 times
Click Reset Drive #9 to Configuration Mode.
Press the "ANY" key.. To continue...

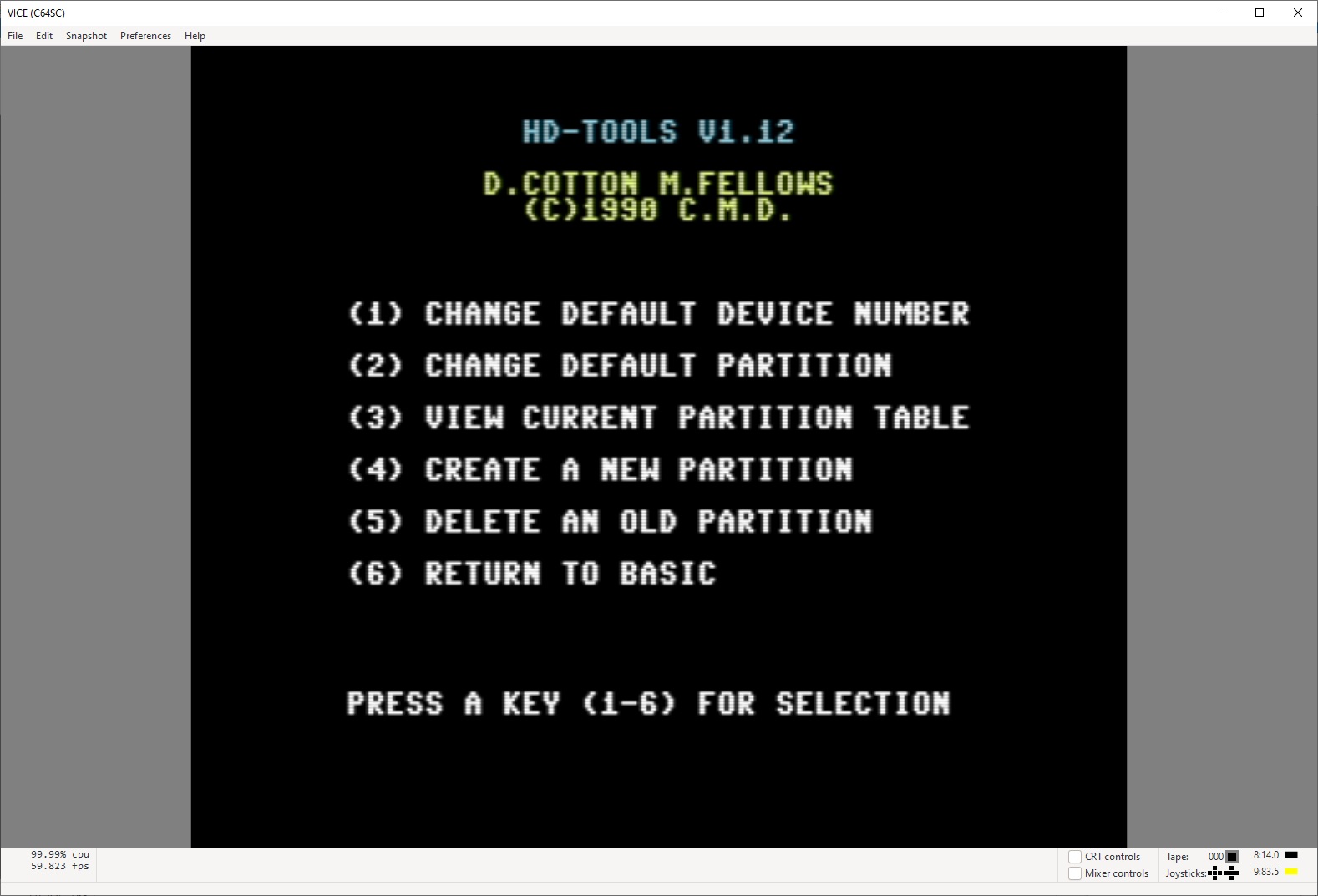

- HD-Tools Menu.jpg (143.25 KiB) Viewed 22364 times

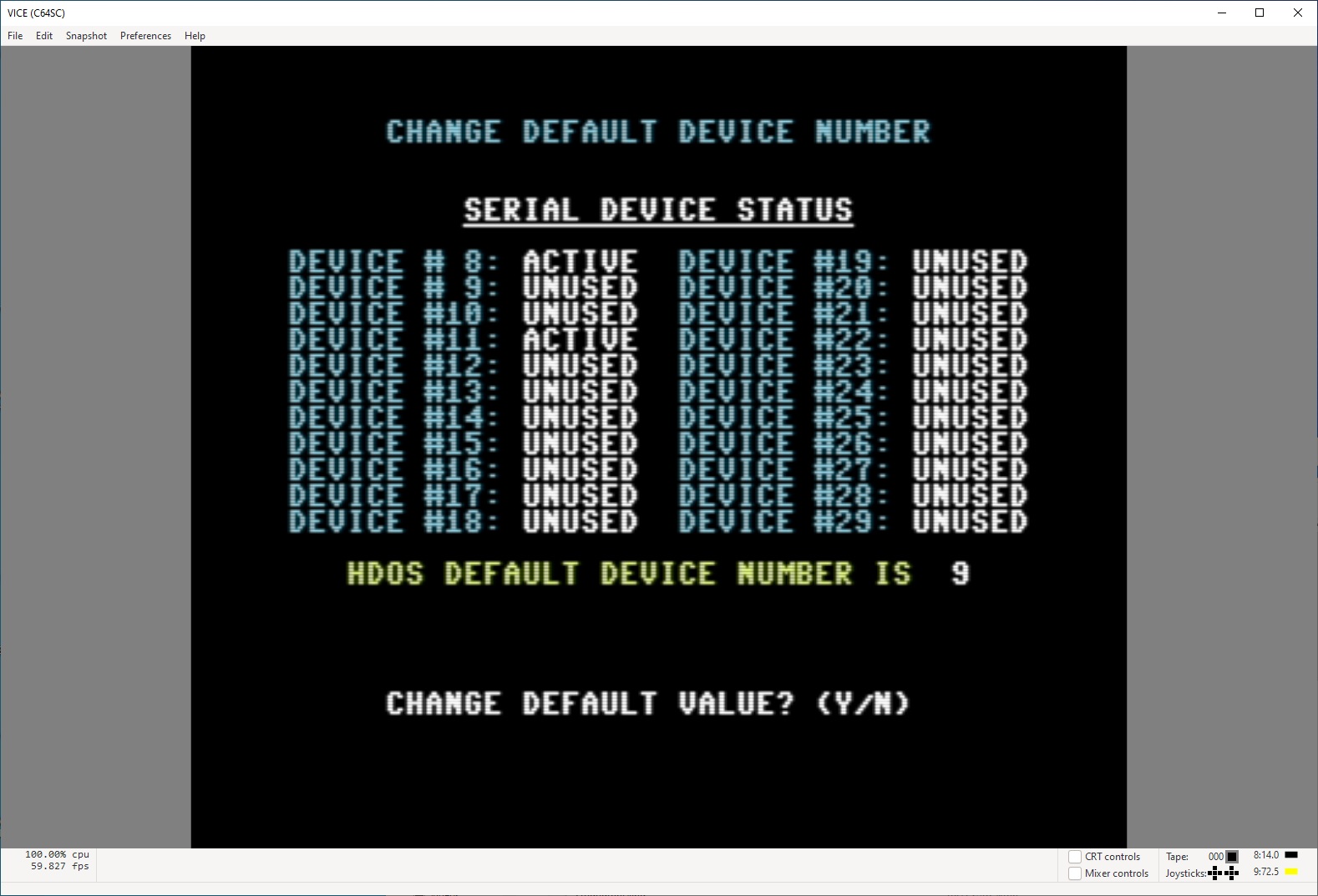

Start out by setting the Default Device #.. Press 1.
- Default device.jpg (229.09 KiB) Viewed 22364 times
You will see the device is already set to 9. So I will choose N.
Moving along, let us select #4 to create our first partition.
The CMD-HD support 7 types of partitions.
1 - ) Native, Supports partition size from 256 BLOCKS up to 65280 (16MB). Support for CMD partitions
2 - ) 1541 - Emulated a 1541 disk, with 664 blocks
3 - ) 1571 - Emulated 1571 Partition with 1328 blocks free.BUF
4 - ) 1581 - Emulated 1581 partition with 3160 blocks free, 1581 subdirectories supported.
5 - ) 1581-C - Not sure about this one.. If anyone can fill me in.. Please comment.
6 - ) PBUF - Print Buffer - Used for the CMD print buffer featrues.. As far as I know this was never implemented.
7 - ) FORN - If you also have your CMD hard drive attached to a Non-Commodore computer, you can setup partitions to be used on that computer. I mean why would you need 4GBs just for your Commodore 64/128..

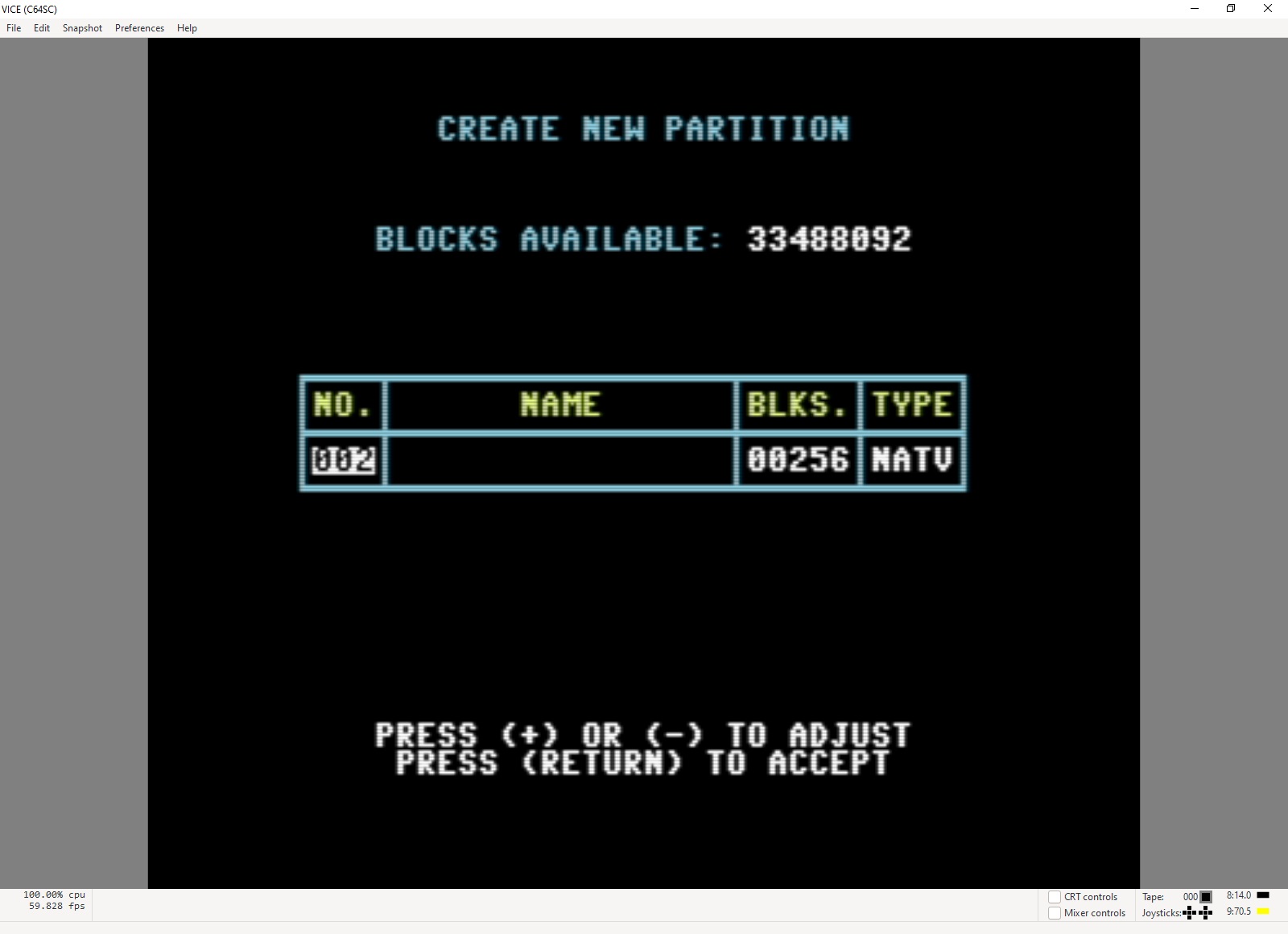

So now lets create a partition.
First your cursor will be on Partition type. Just hit enter on the default here. You use your minus (-) or plus (+) keys to select one of the 7 partitions types noted above.
Next, lets create a 16MB (Maximum size.) partition. press your minus key (Unless you want to watch the numbers spin up to 65280. Press Enter.
Now, let's name the partition.. I use DEMO PARTITION FOR THIS DOCUMENTATION, you can name it anything you want. Enter the name and press ENTER.
- Demo part.jpg (100.71 KiB) Viewed 22364 times

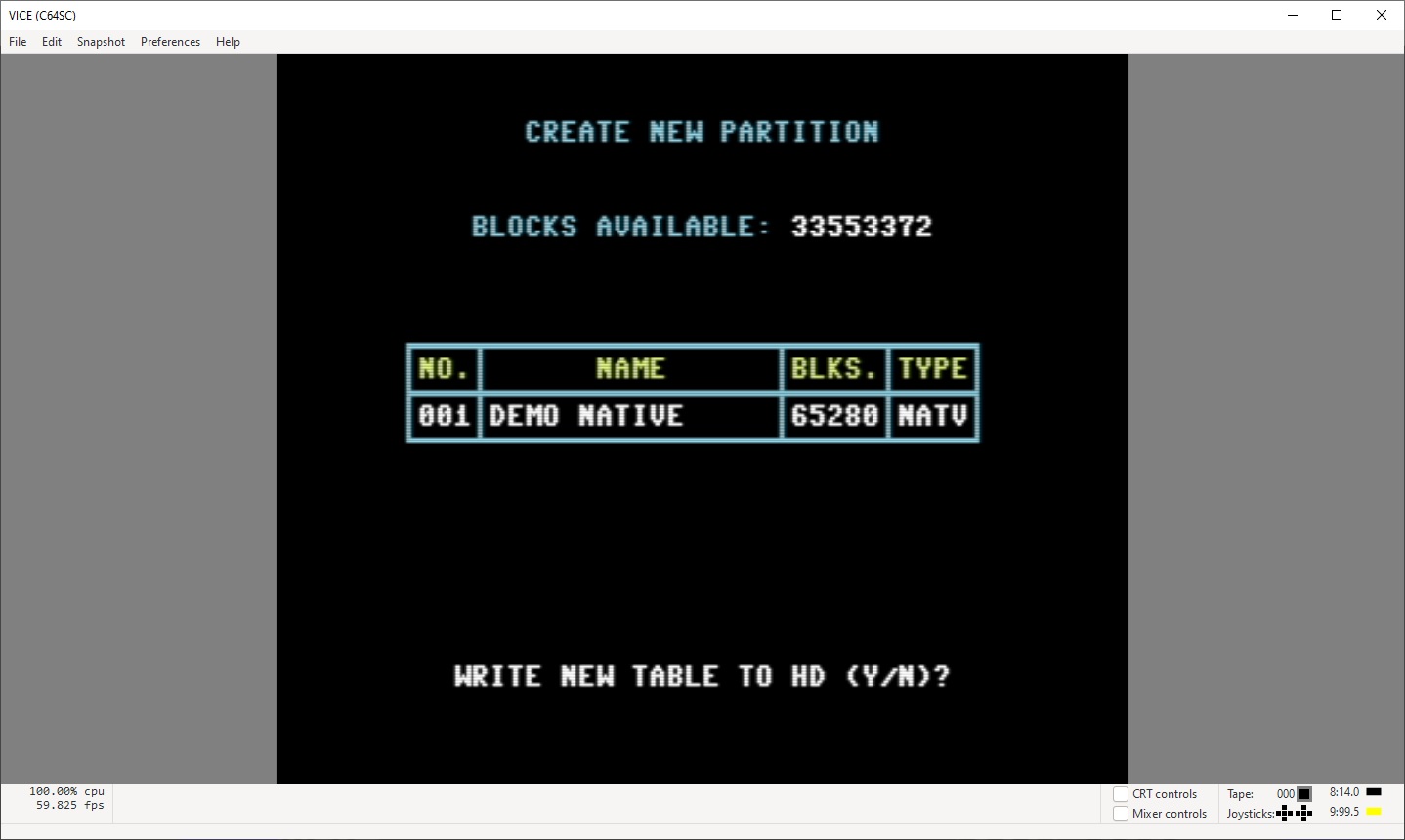

Once you are finished answering the above, you will be asked to write the new table to the HD. Type - Y.
If the partitioning was successful, you will be presented with the following screen.
- default create part.jpg (123.67 KiB) Viewed 22364 times
Press any key to return to the HD-TOOLS screen.
When you are done with the HD-TOOLS program, and exit to basic. Do not forget to reset the drive.
Click again on the drive indicator in the status bar and select Reset Drive # x.
Now if we do a load "$",9 we should see the partition we created.
Let us now set the Hard Drives Real Time Clock, this will be used to write a time a date stamp on your files, and set the clock on certain BBS programs if you run one.
load "set hd clock",8 (Or whatever device you attached your hdtools.d64 image on).
Enter the device number of your CMD hard drive and press enter.
Use the - and + keys to set the hard drives real time clock and hit enter when done.
Once these steps have been completed, you how have a fully functioning emulated CMD-HD on your VICE installation.. Enjoy!
If you wish to have your CMD-HD image be attached when VICE is loaded, add the following to the command line.
-<DEVICE NUMBER> "<IMAGE PATH\IMAGE NANEM>.dhd"
-------------------------------------------------------------------------------------------------------------------------------------------------------------
